Product Description

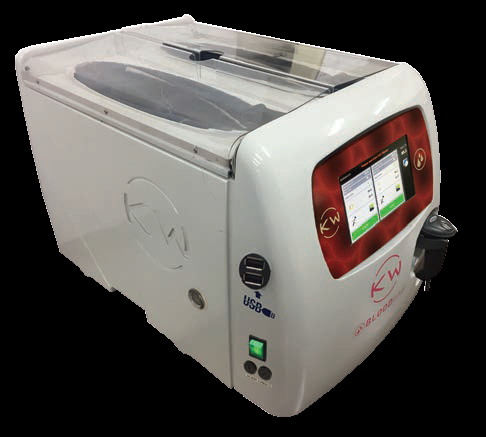

Plasma Fast Thawer :  With sensors, connectible via USB and ethernet, advanced control software (user identification, temperature cycle and whole process registration,  diagnostic and alert).
The W-PFD, W-SCFD line is a veritable challenge to common sense in terms of size, structure and information available.
The KW fast defrosting system for plasma and stem cells represents the new point of reference for the user interface and  for the functions of medical equipment, where a high visual impact is combined with sophisticated management of the bag preparation unit.

Technical Specifications

MODEL WPFD 2/4

POCKETS 2
DEFROSTING CAPACITY  : up to 2 (1000 ml) bags or up to 4 (460 ml) bags
ADJUSTMENT RANGE Up to +40°C and more
EXT. DIMENSIONS (lxpxh) 640x396x420 mm
NET WEIGHT (Kg) 20
CAPACITY (lt) 25
INTERFACE N.2 USB ports and Ethernet port
POWER SUPPLY 230 Vac-50 Hz 800W
CONTROLLER TOUCH SCREEN 7”

Full Details

Features:
Compact, made of 3 macro-groups:
• The system is easy to use, compact and economic, easy to implement into blood banks or external departments.
ABS Antibacterial frontal part  with control panel and electronic components.
Water tank in antibacterial HDPE internal/external in one piece rotor moulding technology without any pre-post assembly.
Complete with lids in Antibacterial methacrylate.
Water drain from the bottom for maximum hygiene.
Easy to use and to maintain.
Easy Assembly and fast replacement of any faulty part
The system is easy to use, compact and economic, easy to implement into blood banks or external departments.
Innovation of the user interface with “touch screen “display : DISPLAY 7.0” WIDE 165x105 mm
Functions :
Thus system has up to three different defrosting pockets, each fitted with two temperature sensors, which allow the corresponding cycles for the preparation of blood bags to infusion temperature to be carried out simultaneously.
Total traceability and real time monitoring : Thanks to its intuitive interface and the bar code reader, WPFD provides the user with fast defrosting time and full traceability, as well as the ability to track the cycle in real time.
Barcode Reader : Integrated in the system, it is used for identification of the bag and the operator

Process recording and data traceability with SW Tracerand HW: WiFi, USB, SD card and Ethernet

Possibility of continuous monitoring of the entire defrost cycle.
The plasma bag does not directly contact the thermostatic
bath, therefore it remains completely dry and protected against
contamination.
• The pocket material is guaranteed to remain intact even after
repeated insertions of the frozen bag, which might have cutting
edges.
• The temperature sensors inside the pocket allow recording the
trend of the heating process for each bag.
• The machine version with three trays allows the fully independent and asynchronous activation of 3 heating processes.
• Alarm in the case of plasma bag breakage. • The temperature of the thermostatic bath can be higher than the final temperature required for
the plasma bag, as the temperature sensors in contact with the bag indicate that heating has taken
place to the set temperature and the control system interrupts the process emptying the tray in just
seconds.
• It is possible to activate the function for massaging the bag and homogenising the plasma by quickly
filling and emptying the operating tray of the individual defrosting pocket.

Simple to use:
There is no need to indicate the defrosting time in relation to the bag size, as the machine interrupts the process
when the required temperature is reached.
• The user can see the surface temperature reached by the bag in real time on the display.
• The whole process is recorded automatically.
• Total connectivity.
• Simple to clean:
If the bag is broken the contents remain inside the pocket without contaminating the thermostatic bath; the
pocket can easily be removed, washed under running water and then refitted.
The bath water is treated with sterilising substances according to the maintenance procedures.
