Product Description

Freeze-drying (lyophilization) is a sublimation-based dryingtechnique that removes water from samples by freezing them and then applying a vacuum to convert ice directly into vapor. The T Series Vacuum Freeze Dryers are compact, space-saving laboratory models designed for routine freeze-drying applications with flexible sample handling options. These systems are ideal for small to medium batch processing and multi-user environments.

Technical Specifications

Available Models : MBFD-T 7003, MBFD-T 7006, MBFD-T 9006

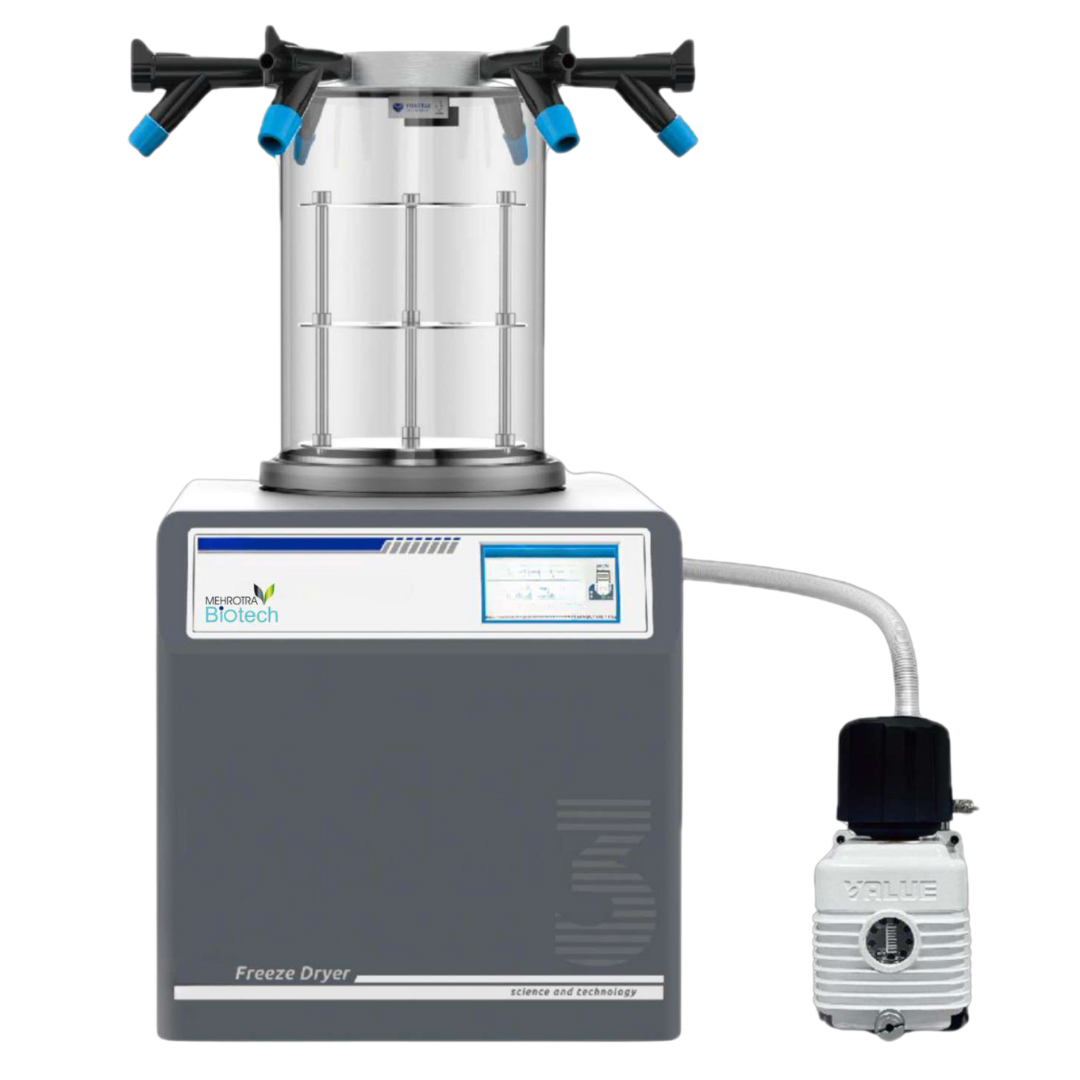

· Compact laboratory freeze dryer with bell-shaped drying chamber or multi-manifold T-frame configuration

· Ice condenser capacities from 3 kg to 6 kg

· Ice condenser temperature down to –70°C or –90°C, ensuring efficient vaportrapping

· Cold trap volumes ranging from 5 L to 10 L

· Suitable for organic solvents and corrosive samples

· Vacuum level up to 5 × 10⁻² mbar

· Supports eutectic point detection system

· ·  External valve options: 6 / 12 / 24 ports, depending on model

· Energy-efficient refrigeration systemwith fast pull-down performance
