Product Description

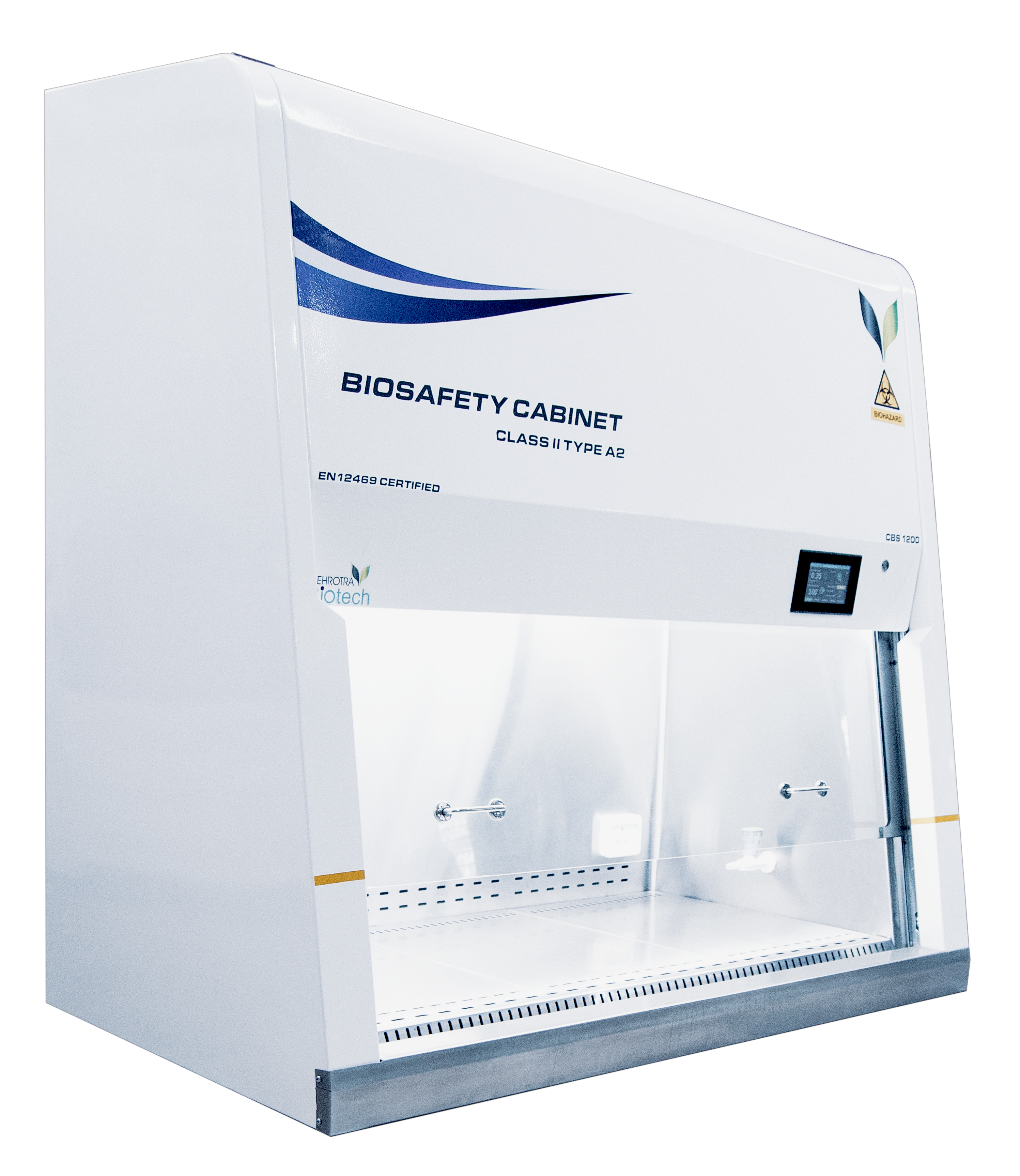

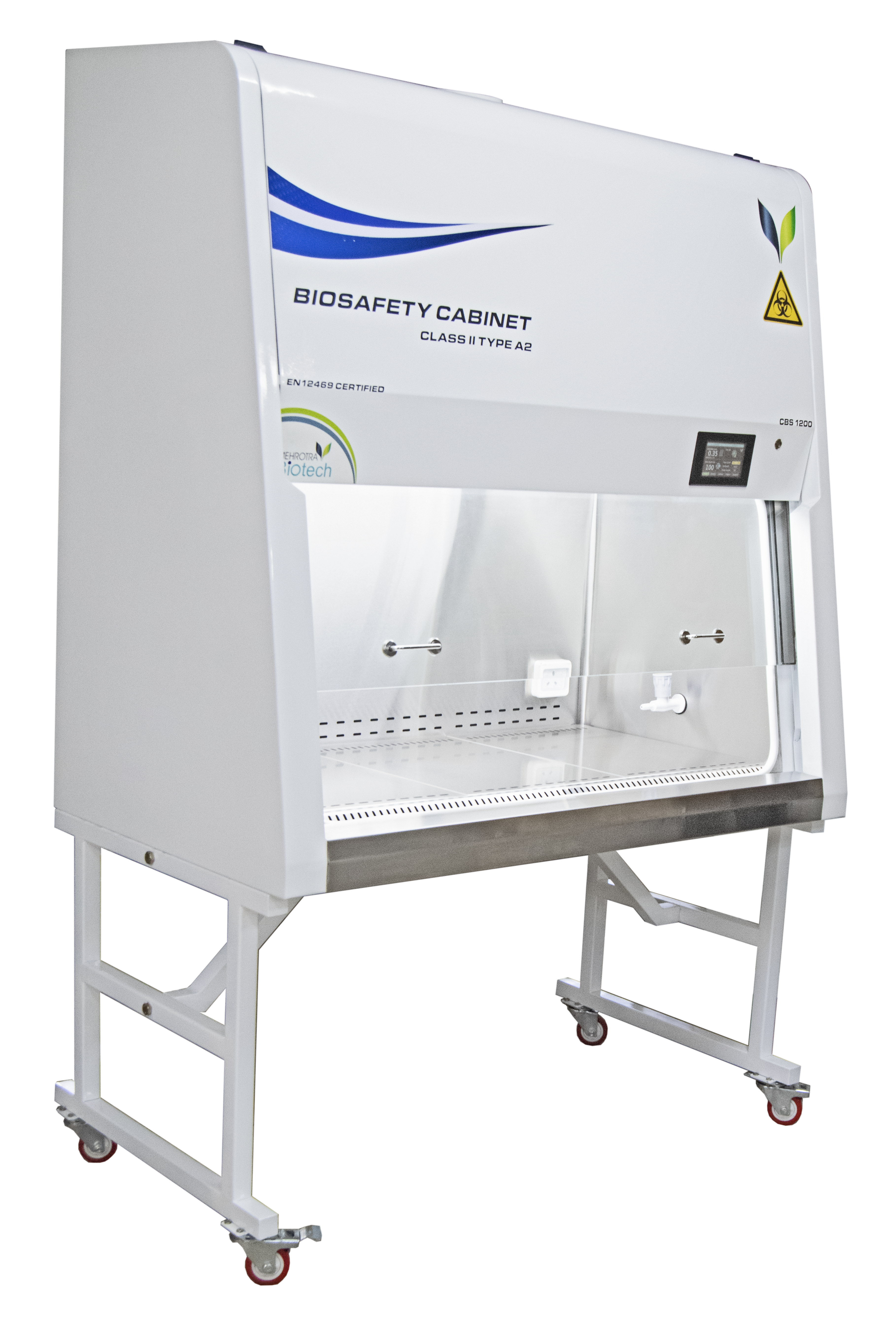

Introducing the MLAB Series all New design of Class II Type A2 Biological Safety Cabinet with 30% exhaust 70% recirculation and Automatic Air Flow Compensation technology that keeps you updated with Filter Health on a real time basis (ADA Compliant) maintaining the constant air flow needed to protect the product, personnel and environment.
Designed in Accordance with NSF49 and Certified by EN12469, the Mehrotra Biotech make Bi- osafety Cabinet offers more reliability and ease of working backed by energy efficient blowersand LED lighting.
Technical Specifications
Model: CBS1200
External Dimension(LxWxH) 1359x746x1330 mm
Internal Dimension(LxWxH) 1240X 580x660 mm
Display: 5 “ Full color Touch Screen TFT Display
Cleanliness Level: Class 10(in accordance with ISO CD 14644-1
Filter: H14 HEPA Filter Ƞ 99.999% @0.3µm
Noise <58 dB ±5%
Sterilization: 30W 254nm UV Tube
Blower: 2600rpm energy efficient AC/DC ECM blower
InFlow Velocity: 0.51 m/s +/- 0.05m/s
InFlow Velocity: 0.51 m/s +/- 0.05m/s
Illumination: 1 Nos. 24W LED Tubelight
Front Sash: Double layered laminated glass for UV protection
Workspace: AISI 304 Stainless steel fragmented with removable worktop.
Standard Service Port:
2 Nos 16 Amp Socket with IP56 (splash proof)
1 Nos Gas nozzle with shutoff valve.
Sash Opening: 8in (203.2mm) as per standard, can be adjusted 250mm(optional)
Rated Voltage: 220V –240V /50hz
Rated Power: 340W
Standard Accessory: Powder Coated MS Base Stand with Castors.
Optional Accessory: Additional Power Sockets with IP56 liquid splash proof, height adjustable stand, Thimble duct connection with accessories, External exhaust for duct
